Copper Pipe and Fitting in Malaysia
Copper pipe and fitting is a common material widely used in Malaysia domestic water plumbing, air conditioning and refrigeration, medical gas distribution, vacuum piping, fire sprinklers, fuel gas distribution and also in some irrigation and agriculture usage. The high temperature tolerance and long lasting lifetime is the main reason why copper are widely and trusted by the engineers for their system.
Apart from that, copper also are recyclable which added more value to its usage. Copper pipe and fitting usually manufactured to meet the requirement established by ASTM international to ensure the standard and it's quality. All copper tube supplied in Malaysia market according to ASTM standard must have minimum of 99.9% pure copper and normally deoxidized with phosphorus and referred to as UNS C12200 or DHP1 copper but there's a multitude of types of copper available in the market according to specified applications.
Advantages of using Copper Pipe and Fitting :-
Copper pipes are proven to be durable with the piping material for each application can withstand the pressure up to 1000psi. The long lasting lifespan of copper pipe and fitting ranging from 50 - 70 years depending on the variety of surrounding factor such as climate, water quality and application. Copper material are the ultimate choice for most applications and usage. Apart from that, there are multiple factors and advantages of why copper pipe and fitting are the popular choice for most application in the plumbing and piping world.
- Copper pipe and fitting does not contaminate water distribution - Copper pipe and fittings are know to be a strong corrosive resistant so they doesn't release dangerous materials into the water.
- Copper tube are lightweight - The weight of copper tube are really light thus making the installation process easier.
- Copper piping are better for environment - Apart from their ability to be recycled throughout their lifetime, the manufacturing process for copper pipe and fitting also are more enviromentally friendly as it releases less dangerous emissions and chemicals into the environment.
- Copper pipe and fitting are fire resistant - Copper piping features a high thermal rating it is also resistant to fire.
- Copper tube are formable - As the copper tube properties are flexible and can be bent without breaking, usually the usage for elbow and bend can be reduced.
- Copper piping jointing is leak-proof and pressure resistant - Copper tube are usually joined with copper capillary fitting. These fitting save material used and are strong, neat and leak-proof. Copper tubing also can withstand high pressure up to 1000psi.
- Copper last longer - Copper pipe and fitting have excellent resistant to corrosion and heat, have high mechanical strenght and resistant to UV degradation. These qualities will ensure a long and trouble free service throughout it lifetime.
Different types of Copper Piping
Type K Copper Pipe : Type K have the thickest wall among other type of copper pipe. Type K Copper usually are used for water distribution, fire protection, oil distribution, HVAC and other application in construction industry. Type K Copper pipe also are the preffered choice for main water line as it can withstand strong pressure in trenches.
Type L Copper Pipe : Type L Copper usually are used for interior plumbing, some HVAC Application and also fire protection. As the thickness for Type L Copper pipe is thinner than Type K, the usage for Type L is more common to be used as it is more versatile and can fit into many application especially to replace old water lines.
Type M Copper Pipe : Type M Copper pipe is thinner than Copper Type K and L. Type M Copper usually are sold in both rigid and flexible type and usually are used in water heating plumbing system. In Malaysia, Type M Copper pipe are popular to be used in residential works as Type M Copper have cheaper price.
Copper Pipe and Copper Tube application in Water distribution, Refrigeration, Heating and Air Conditioning and Medical Field.
Application for Copper Pipe and Fitting in Malaysia
- Domestic & Commercial Water Distribution : As copper pipe is antimicrobial (meaning that microbes and fungus unable to grow in copper pipe), copper pipe and fitting is a great choice to be used as a mean for transferring potable water.
- Air Conditioning and Refrigeration : Copper have excellent thermal performance - up to 8 times better than aluminum, great resistance to corrosion and formability which make copper tube and fitting the ideal material for heating, air conditioning and refrigeration system.
- Medical System application : Copper Pipe also are used in medical field application to deliver the medical gases for treament. Again, Copper pipe resistance to microbial gases ensures the gases transfered would remain pure and clean.
Copper Pipe General Properties
Table below illustrate the General Properties for Copper Pipe but Manufacturers may uses percentage of copper purity and compound so the figures may varies.
| Property | Value |
|---|---|
| Copper, Cu | 98.5% |
| Iron, Fe | 0.8 - 1.2% |
| Phosphorous, P | 0.01 - 0.04% |
| Zinc, Zn | 0.2% |
| Temper 050 | 42ksi |
| Temper 060 | 37ksi |
| Modulus of Elasticity (E) | 124GPa |
| Yield Stress | 105 MPa |
| Ultimate Tensile | 203.8 Mpa |
Copper Pipe and Fitting have been a leading choice for tubing and pipelines application due to it's Versatility, Great resistance level and Longevity. That's why we at Heap Wah Malaysia are commited to supply a best Copper pipe and fitting for our customers. Below are some of the variance of Copper Tube, Pipe and Fitting that available at Heap wah Malaysia.
Some of the Copper Pipe & Fittings Available at Heap Wah Malaysia are :
1. Kembla Copper Tube To EU Standard BS EN 1057
Kembla is a world class producer and Australia’s leading supplier of copper tube and manufactures under the famous KEMBLA® brand name. MM Kembla has a comprehensive range of tube and fittings products to comply with a variety of International Standards. Included in the KEMBLA® range is European Standard BS EN 1057 copper tube, the specified copper plumbing tube standard used in Europe, Hong Kong, China, Singapore, Malaysia, the Middle East and other international locations.
KEMBLA® copper tube is manufactured to fully conform to BS EN 1057 specifications and is available in either bare, Kemlag Plus®,lagged tube or Kemline Plus® lagged tube for use in both hot and cold water applications. The KEMBLA® BS EN 1057 product range is available in both half-hard and hard drawn tempers and supplied in diameters of 15mm through to 159mm in a variety of wall thicknesses to meet the necessary Class X or Class Y tables. Standard lengths of 5.8m are available to facilitate ease of containerisation.
Different Class of Kemba Copper Pipe :-
- KEMBLA COPPER TUBE BS EN 1057 CLASS X USAGE : Above ground applications including drinking water, hot and cold water supply, sanitation, central heating, and other general purpose applications deems suited.
- KEMBLA COPPER TUBE BS EN 1057 CLASS Y USAGE : Underground works and heavy duty requirements including hot and cold water supply, gas reticulation, sanitary plumbing, heating and general engineering.
Quick Links :

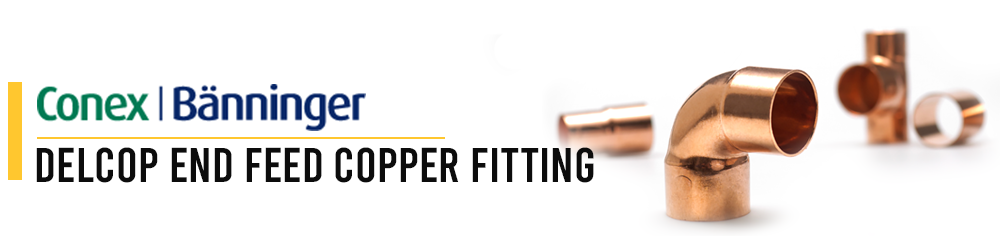

2. Delcop End Feed Copper Fitting
Delcop end feed copper fitting is a range of copper capillary soldering and brazing fitting by Conex Banninger United Kingdom. It consist of wide range of brazed copper fitting manufactured using high quality copper and copper alloys.
Delcop End Feed Copper are available in sizes ranging from 6mm to 54mm for plumbing, refrigeration and air conditioning application in Malaysia. The copper fitting is suitable for connecting with copper tubes in accordance with EN 1057 standards. Delcop end feed Copper fitting are designed for solder and brazing application with the execption of union fitting with copper tail which obviously cannot be brazed. The copper fitting are manufatured with copper and gunmetal which makes the fitting immune to dezincification
Delcop End Feed Copper Fitting Features :-
- Multiple Application
Delcop End Feed is Extremely versatile, covering application in gas and heating systems, hot and cold drinking water, refrigeration, air conditoning, compressed air, solar and fuel distribution. - Accessories
Apart from a comprehensive range of fitting types, the Delcop End Feed range offers accesories including mats, tube cutters, solders, fluxes, deburrers and cleaning brushes. - Compact and Neat
Delcop End Feed is manufactured in copper, gunmetal and in some instances DZR brass. The Low-Profile, Compact body gives a neat joint which is particularly handy in situations where space is restricted. The smooth lines of the fitting also help to minimise flow restriction. - Reliable and Easy to use
Designed for soft solder and brazing applications, Delcop can also be brazed with the exception of union fittings with copper tails. Brazing would also be utilised when fitting in ACR applications. Delcop End Feed is a capillary fittings that ensure that when correctly soldered or brazed to copper tubes, a mechanically strong, leak-proof joints is formed. Delcop End Feed is also a relatively light fitting, making it easy to handle in application. - Anti-Corrosion and Anti-Microbial
Manufactured from copper and gunmetal, with some items produced in dezincification resistant (DZR) brass, Delcop fittings are immune or highly resistant to dezincification, and safe to use with drinking water supply. Copper is well known for it's anti-microbial properties making it an ideal choice for use in sensitive environments such as hospitals and clinics. - Water Safe
The symbol CR found on Delcop End Feed DZR Fittings is recognized by the water industry and specified British Standards as a mark denoting material of assessed capability of resistance to corrosion. - Electrical Continuity
Delcop's design ensures that electrical continuity is maintained throughout mettalic so that earth bonding is not required. - Applications
Delcop End Feed Fittings can be used in a wide range of domestic and commercial applications including Hot & Cold drinking water, Gas, Refrigeration, Solar, HVAC and Fuel Distribution. - Tube Compability
Delcop End Feed fittings are suitable to connect copper tubes in accordance with EN 1057. - Size Availability
Delcop End Feed fittings are available in sizes of 6mm to 54mm. - Operating Pressures and Temperatures
Working pressures and temperatures for Delcop End Feed Fittings are from -20°C to 110°C if soldered and 150°C to 200°C if brazed depends on the brazing alloy used. - Guarantee
When the fittings are professionally installed and used in accordances with the installation instructions, Delcop End Feed is guaranteed against manufacturing defects for 25 years from date of first purchase.
Quick Links :
3. Conex Compression Copper Fitting
Delcop end feed copper fitting is a range of copper capillary soldering and brazing fitting by Conex Banninger United Kingdom. It consist of wide range of brazed copper fitting manufactured using high quality copper and copper alloys.
Delcop End Feed Copper are available in sizes ranging from 6mm to 54mm for plumbing, refrigeration and air conditioning application in Malaysia. The copper fitting is suitable for connecting with copper tubes in accordance with EN 1057 standards. Delcop end feed Copper fitting are designed for solder and brazing application with the execption of union fitting with copper tail which obviously cannot be brazed. The copper fitting are manufatured with copper and gunmetal which makes the fitting immune to dezincification
Delcop End Feed Copper Fitting Features :-
- Multiple Application
Delcop End Feed is Extremely versatile, covering application in gas and heating systems, hot and cold drinking water, refrigeration, air conditoning, compressed air, solar and fuel distribution. - Accessories
Apart from a comprehensive range of fitting types, the Delcop End Feed range offers accesories including mats, tube cutters, solders, fluxes, deburrers and cleaning brushes. - Compact and Neat
Delcop End Feed is manufactured in copper, gunmetal and in some instances DZR brass. The Low-Profile, Compact body gives a neat joint which is particularly handy in situations where space is restricted. The smooth lines of the fitting also help to minimise flow restriction. - Reliable and Easy to use
Designed for soft solder and brazing applications, Delcop can also be brazed with the exception of union fittings with copper tails. Brazing would also be utilised when fitting in ACR applications. Delcop End Feed is a capillary fittings that ensure that when correctly soldered or brazed to copper tubes, a mechanically strong, leak-proof joints is formed. Delcop End Feed is also a relatively light fitting, making it easy to handle in application. - Anti-Corrosion and Anti-Microbial
Manufactured from copper and gunmetal, with some items produced in dezincification resistant (DZR) brass, Delcop fittings are immune or highly resistant to dezincification, and safe to use with drinking water supply. Copper is well known for it's anti-microbial properties making it an ideal choice for use in sensitive environments such as hospitals and clinics. - Water Safe
The symbol CR found on Delcop End Feed DZR Fittings is recognized by the water industry and specified British Standards as a mark denoting material of assessed capability of resistance to corrosion. - Electrical Continuity
Delcop's design ensures that electrical continuity is maintained throughout mettalic so that earth bonding is not required. - Applications
Delcop End Feed Fittings can be used in a wide range of domestic and commercial applications including Hot & Cold drinking water, Gas, Refrigeration, Solar, HVAC and Fuel Distribution. - Tube Compability
Delcop End Feed fittings are suitable to connect copper tubes in accordance with EN 1057. - Size Availability
Delcop End Feed fittings are available in sizes of 6mm to 54mm. - Operating Pressures and Temperatures
Working pressures and temperatures for Delcop End Feed Fittings are from -20°C to 110°C if soldered and 150°C to 200°C if brazed depends on the brazing alloy used. - Guarantee
When the fittings are professionally installed and used in accordances with the installation instructions, Delcop End Feed is guaranteed against manufacturing defects for 25 years from date of first purchase.
Quick Links :
How to install Conex Compression Copper Fitting
Short installation sequences video below will show you how to properly install Conex Compression copper fitting to avoid any leakage and installation faulty.
