Saniflo Macerating and Grinder Home Pump Systems - Where Bathroom Defy Gravity
If you are planning on renovating or building you home, the layout of Bathroom and Waste water Discharge Piping system are among the crucial things to consider into the main plan's layout for the house, as the Bathroom and Sanitary wares Traditional drainage system should be on uphill or inline with the Main Drainage system - as the Traditional Discharge system uses the gravitional force to evacuate the waste, or otherwise your home Waste water discharge system would be a hussle and pipe blockage would be the norm, its a nightmare that everyone would try to avoid.
But now, with revolutionize Saniflo Water Pump & Grinder System, you could decide where your Bathroom and Sanitarywares goes. Heap Wah offers a full range of Saniflo Macerating and Grinder Pump System by Saniflo that would greatly reduces the size of your Waste products before excrete it through the discharge line of your house. Because of the this, the usage of larger diameter Pipe System are no longer deemed necessary thus reduces the overall cost for Materials, Labor and Renovation. In fact, the Pump systems only uses the 22mm Diameter Pipe system to operate.
Plus, using the Above-Floor Plumbing Technology means that the plumber are no longer needs to smash up your home's floor and wall to get to the main pipelines, there's is no need to dig the ground up which means no Disruptive nor Destructive Remodelling. Floors, wall and structural integrity would all remains intact while the project time is greatly reduced and construction mess is virtually eliminated.
How does the Saniflo Pump Discharge System Works?
The Unique Revolutionize Operating principle of the Saniflo Discharge Pump System is just in four simple steps.
|

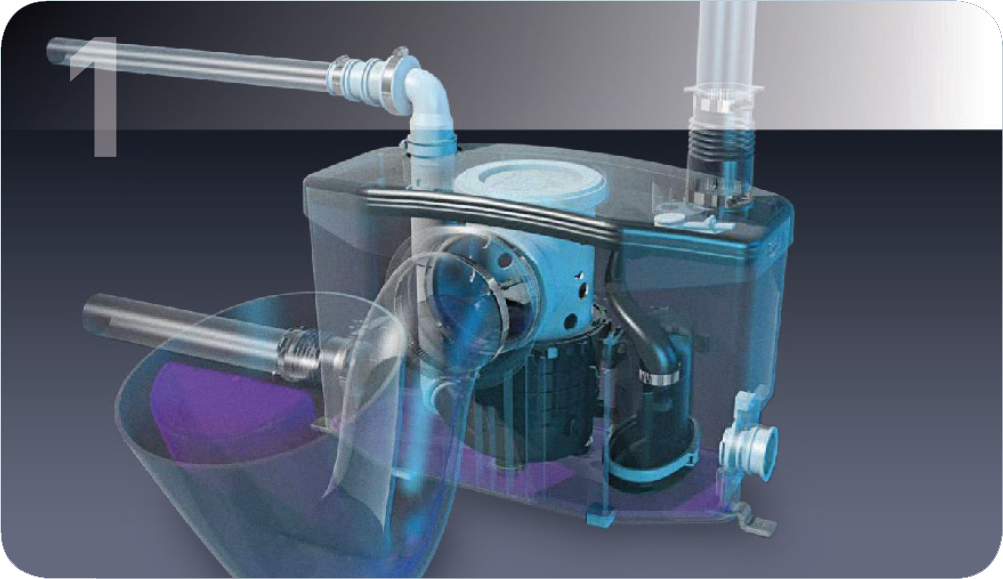

Step 1 : The Toilet is flushed, the water level will rises and the Pump's Grinder motor will turns on automatically
|
Step 2 : Internally, the blades driven by the motor grind the contents into tiny particles in 3 or 4 seconds.
|
|

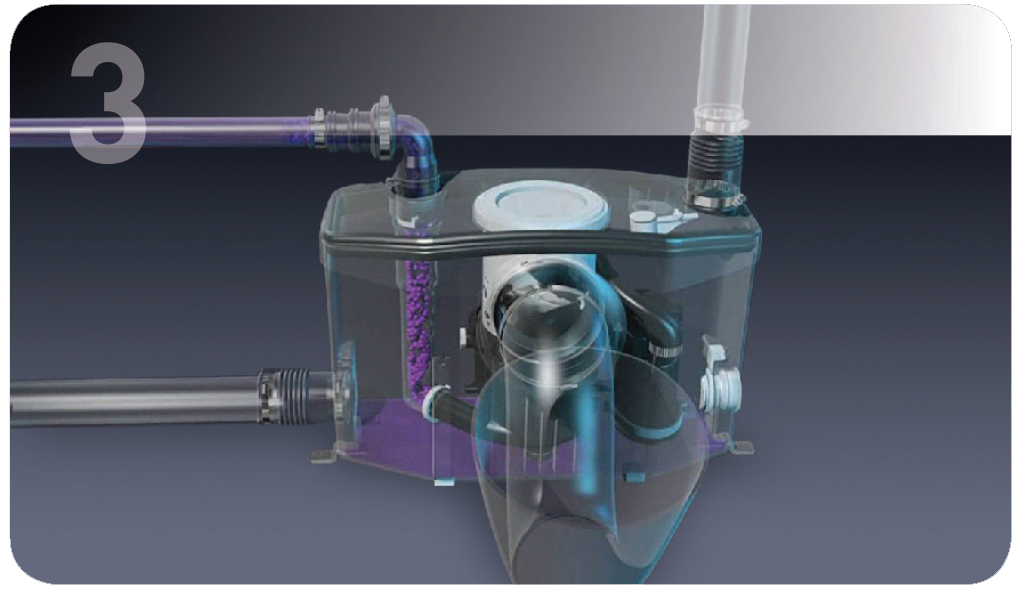

Step 3 : The finely grounded particles are pumped through a standard pipe in 22mm to 32mm in diameter.
|
Step 4 : The macerating tank is now empty (apart from the water seal) and the system is ready to be use again.
|
Some of the Pump System Supplied by Heap Wah Barakah Malaysia :-

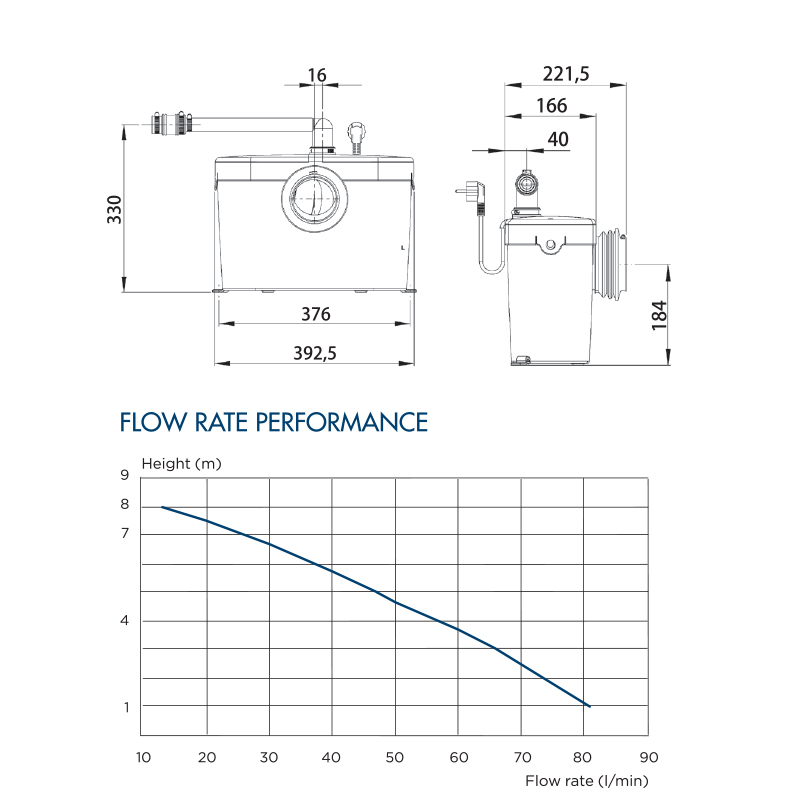

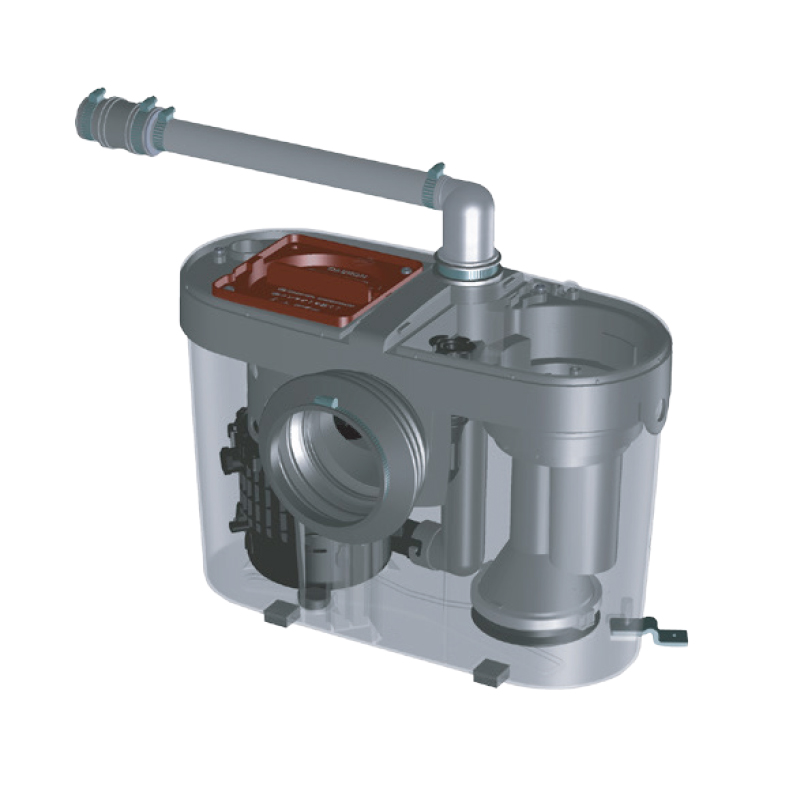

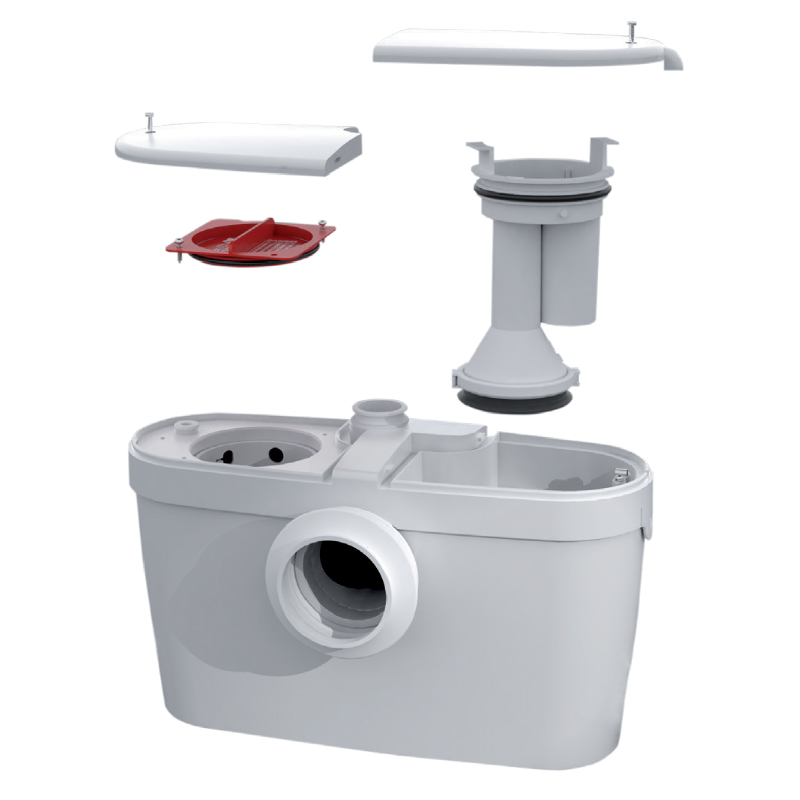

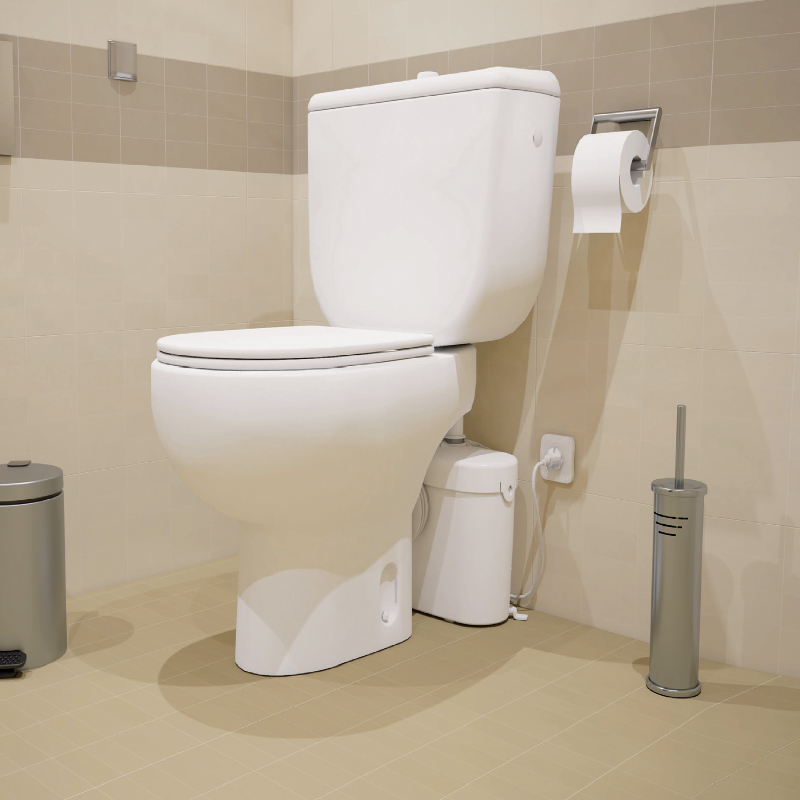

Thanks to it's clean & minimalistic design, Saniflo SANIACCESS® 1 Grinder Water Pump System fits easily into all types of spaces in your Home
    |
Recommended Waste Pipe Diameter : 22 - 32 mm
Normal Operating Temperature : 35°C
Index of Protection : IP44
Electrical Power Supply : 220 - 240 V / 50Hz
Motor Power Rating : 400W
Product's Weight : 5.8 kg
Application for Saniflo Macerating & Grinder Pump: Uses Non-Return Valve System Low Noise Water Closet Compatible
|

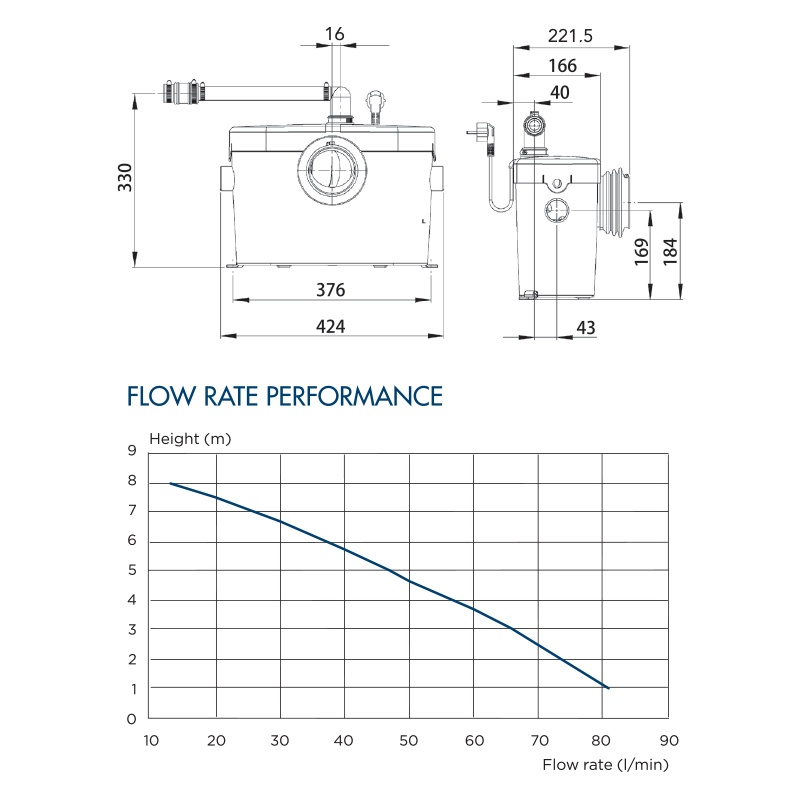

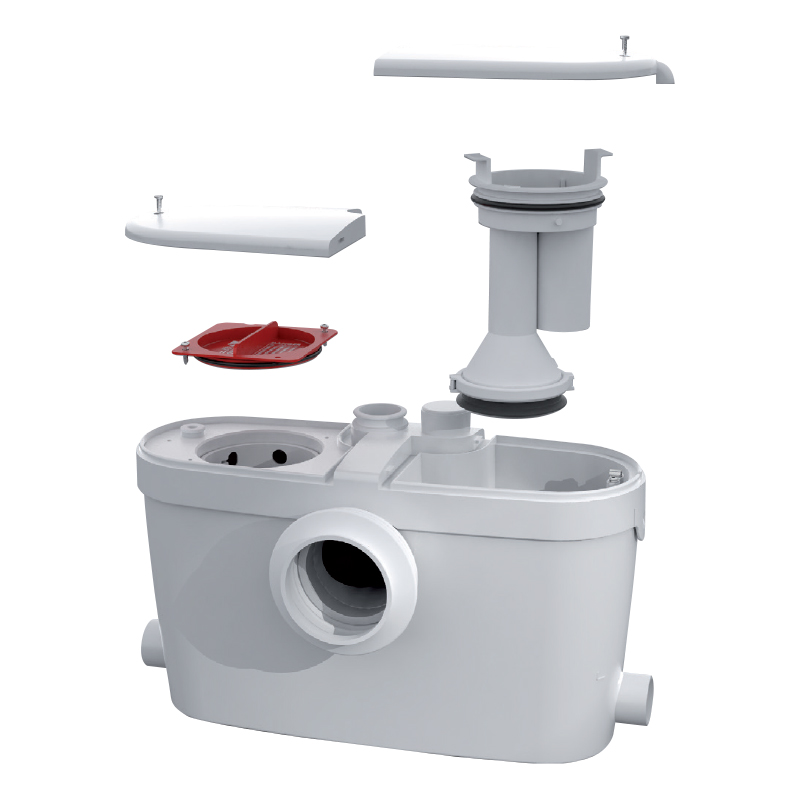

Quiet and Smart, Saniflo SANIACCESS® 3 Grinder Water Pump System makes it possible to install a complete bathroom anywhere in your house
    |
Recommended Waste Pipe Diameter : 22 - 32 mm
Normal Operating Temperature : 35°C
Index of Protection : IP44
Electrical Power Supply : 220 - 240 V / 50Hz
Motor Power Rating : 400W
Product's Weight : 6.4 kg
Application for Saniflo Macerating & Grinder Pump: Uses Non-Return Valve System Low Noise Water Closet Compatible Wash Basin / Sink Compatible Shower Compatible Urinal Compatible Bathtub Compatible Washing Machine Compatible
|

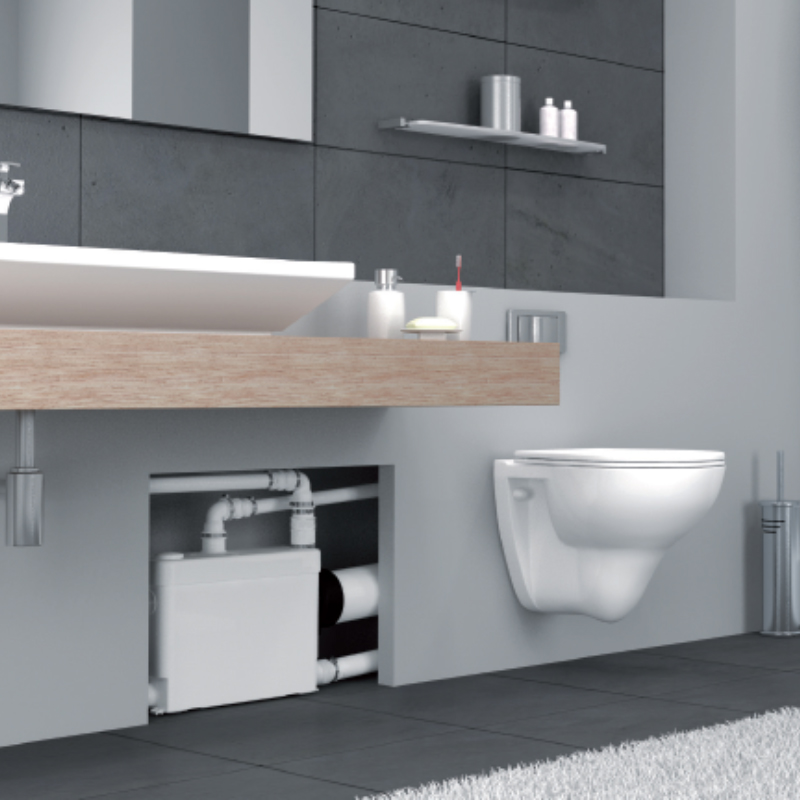

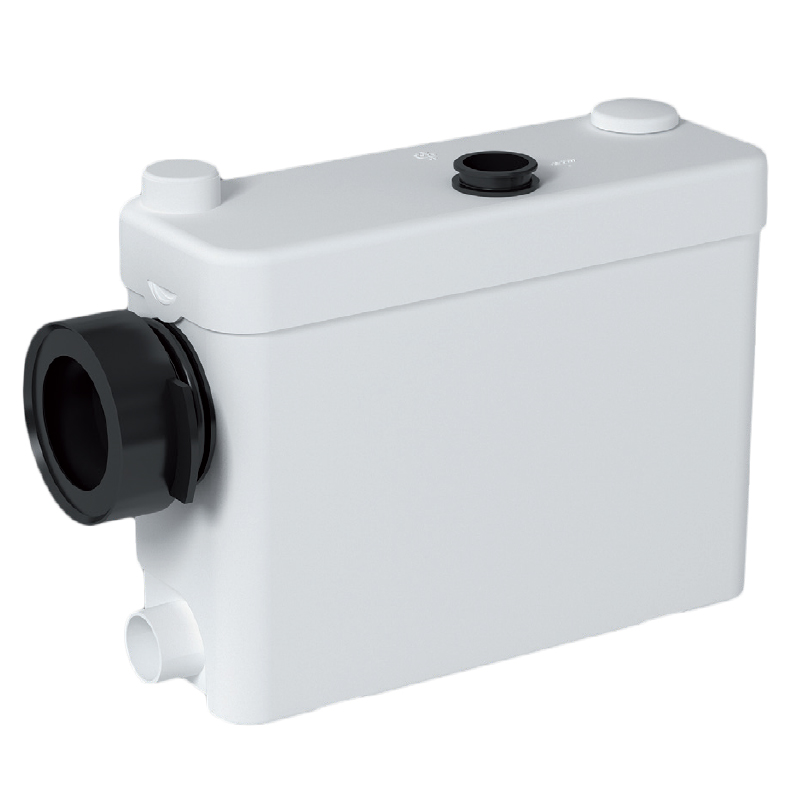

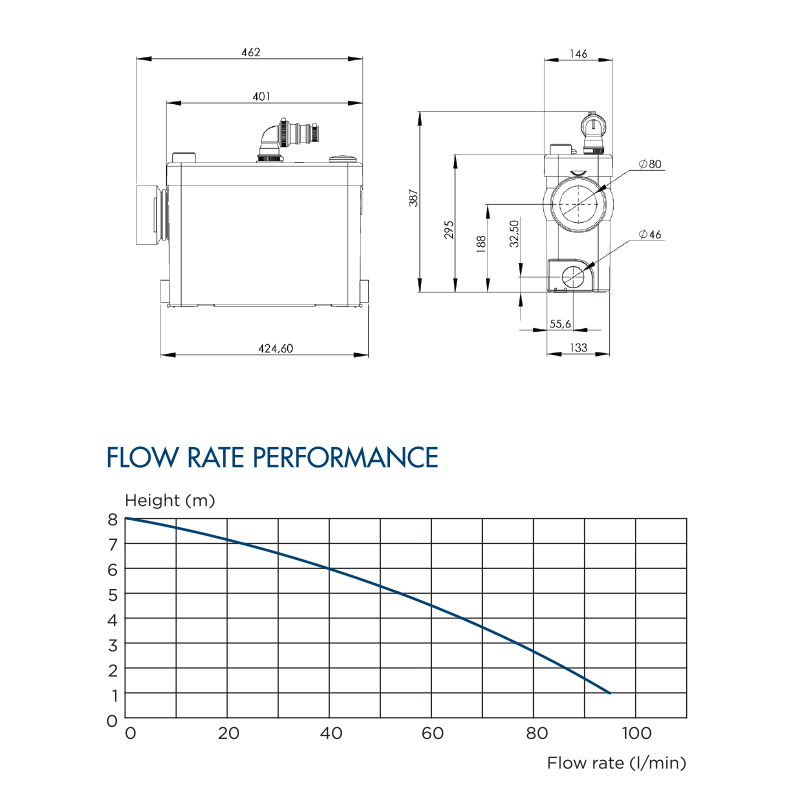

Slim and Minimalist, Saniflo SANIPACK® Grinder Water Pump System comes in remarkably slim 146mm depth designed to be located in a wall cavity in order to install facilities in a very discreet way.
    |
Recommended Waste Pipe Diameter : 22 - 32 mm
Normal Operating Temperature : 35°C
Index of Protection : IP44
Electrical Power Supply : 220 - 240 V / 50Hz
Motor Power Rating : 400W
Product's Weight : 7 kg
Application for Saniflo Macerating & Grinder Pump: Uses Non-Return Valve System Can be equipped with SANIALARM® Low Noise Wall Hung WC Only Wash Basin / Sink Compatible Shower Compatible Urinal Compatible Bathtub Compatible Washing Machine Compatible
|

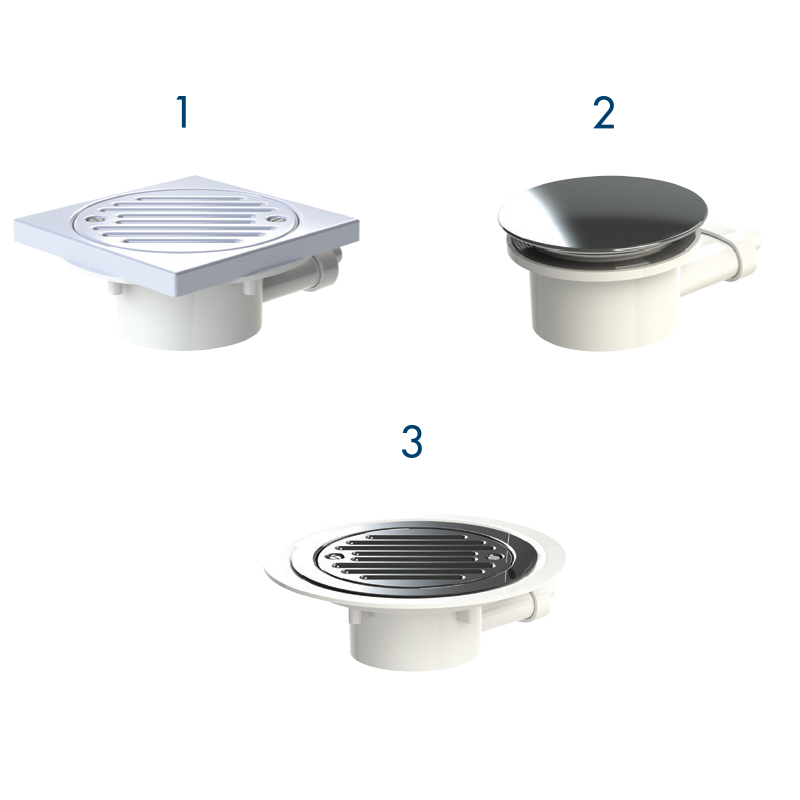

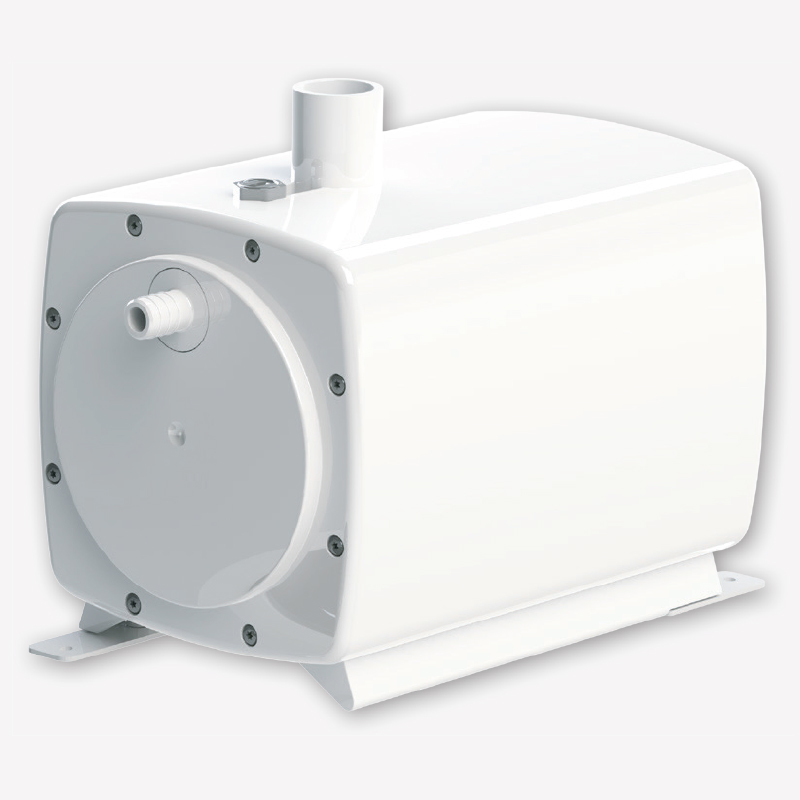

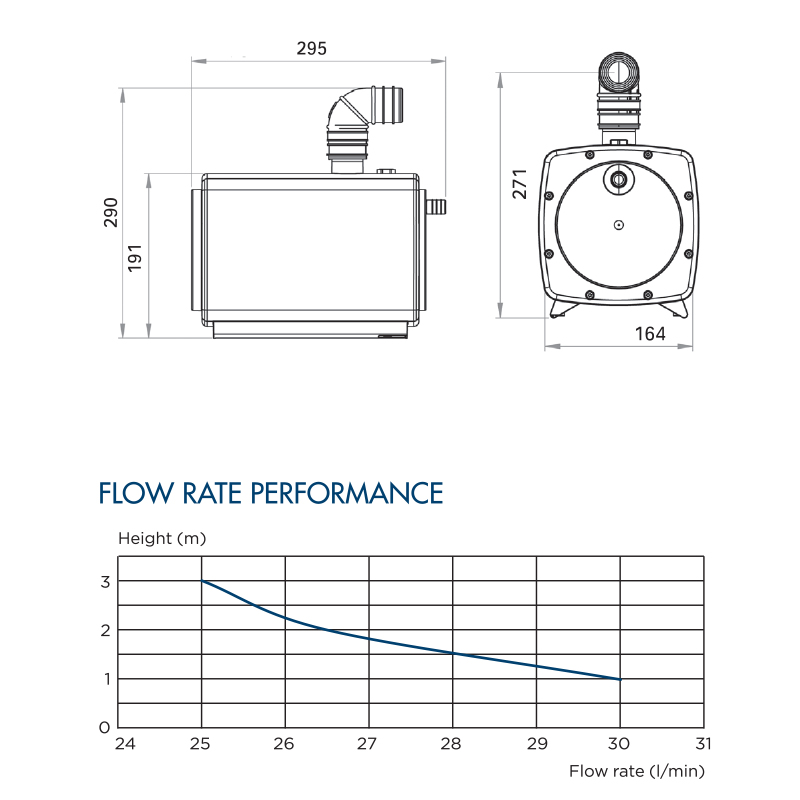

Install a wet floor room where gravity drainage is impossible, Saniflo SANIFLOOR® Grinder Water Pump System includes a wet floor siphon with Sensor and suction pump
    |
Recommended Waste Pipe Diameter : 22 - 32 mm
Normal Operating Temperature : 35°C
Index of Protection : IP44
Electrical Power Supply : 220 - 240 V / 50Hz
Motor Power Rating : 400W
Product's Weight : SANIFLOOR 1 - 7.9 kg SANIFLOOR 2 - 7.9 kg SANIFLOOR 3 - 7.7 kg
Application for Saniflo Macerating & Grinder Pump: Uses Non-Return Valve System Floor Trap Compatible Shower area & Bathtub Compatible
|

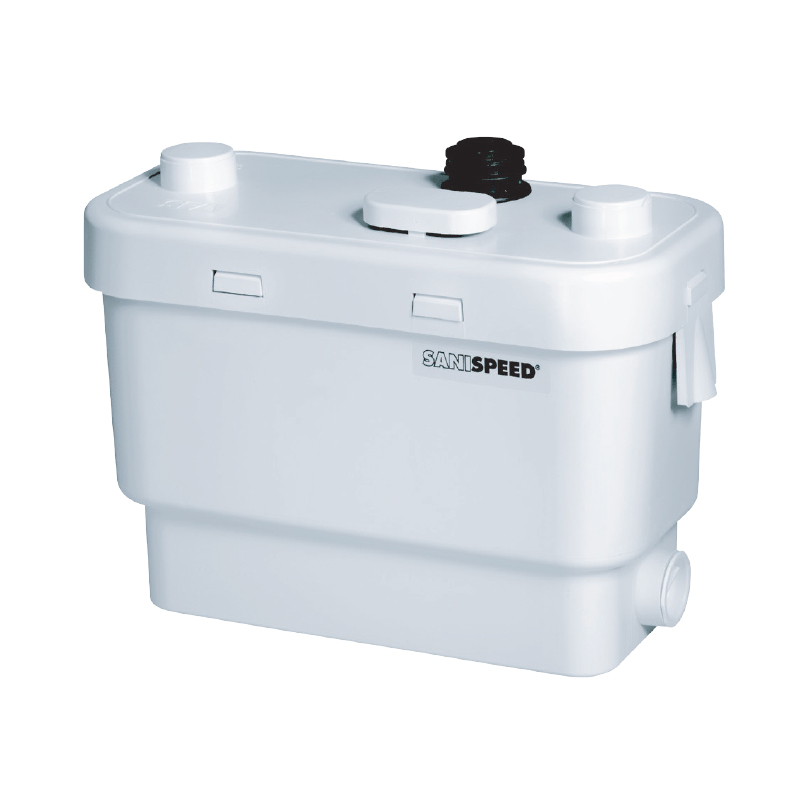

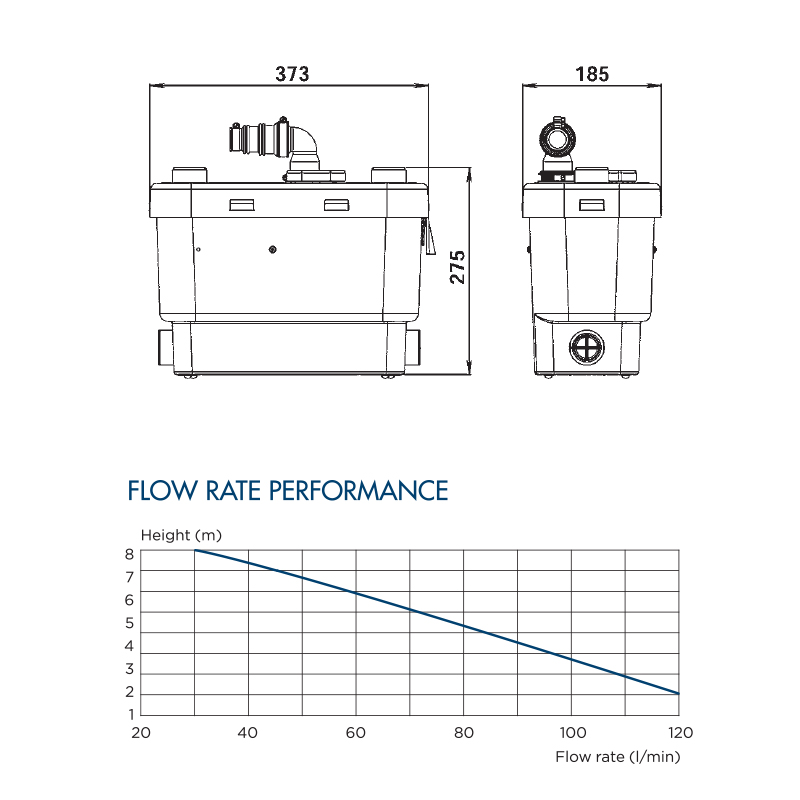

Saniflo SANISPEED® Grinder Water Pump System is a powerful Grey Water Pump which is intended for Light commercial situations.
    |
Recommended Waste Pipe Diameter : 32 mm
Normal Operating Temperature : 35°C
Maximum Incoming Water : 75°C
Index of Protection : IP44
Electrical Power Supply : 220 - 240 V / 50Hz
Motor Power Rating : 400W
Product's Weight : 6.4 kg
Application for Saniflo Macerating & Grinder Pump: Uses Non-Return Valve System Can be equipped with SANIALARM® Low Noise Wash Basin / Sink Compatible Shower Compatible Urinal Compatible Bathtub Compatible Washing Machine Compatible
|

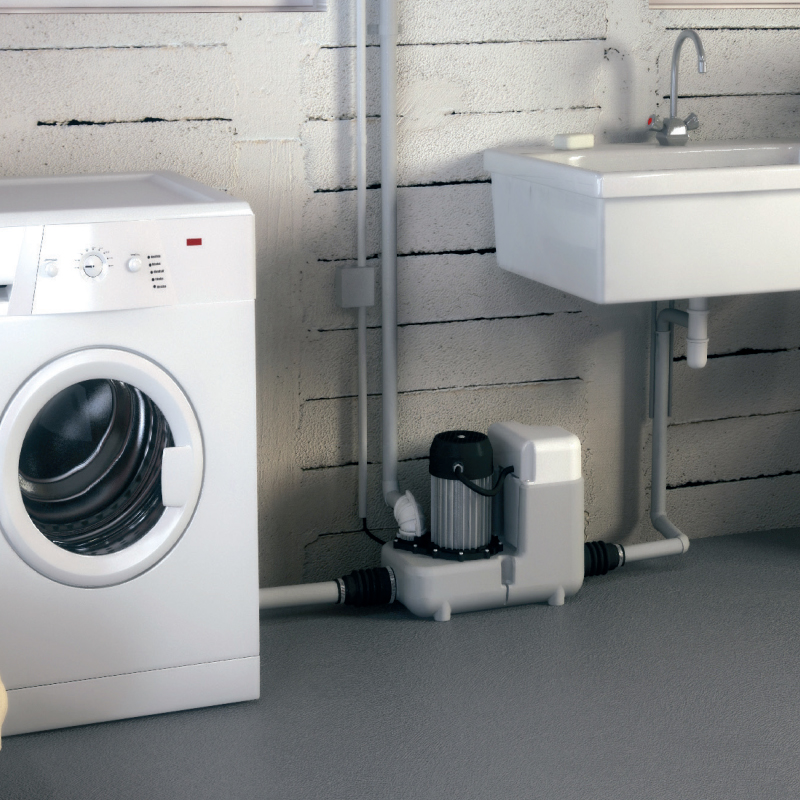

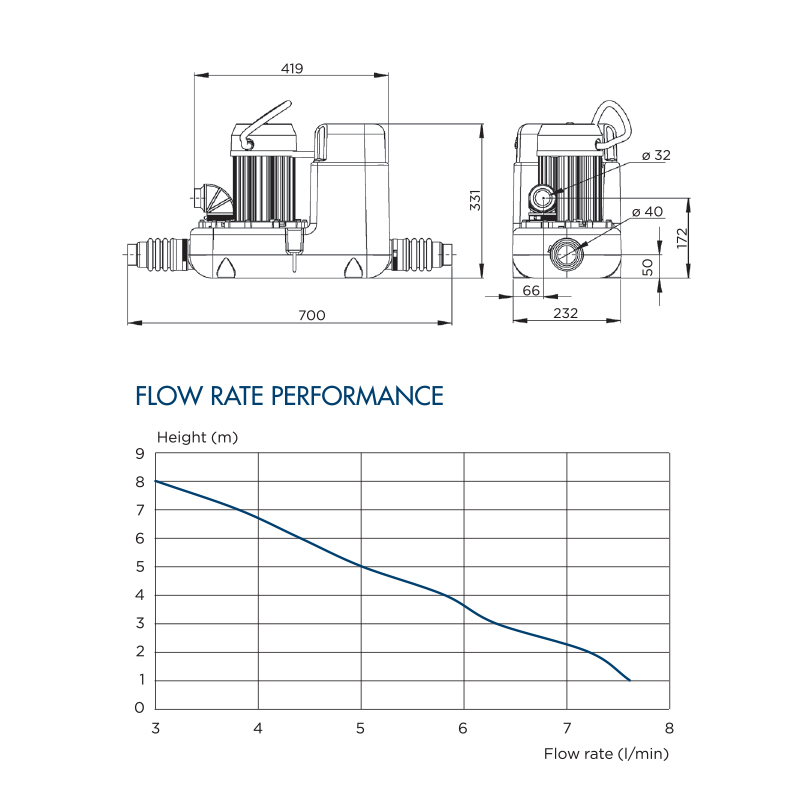

Resisting to High Temperature, Saniflo SANICOM®1 Grinder Water Pump System can be used as a lift station for any kind of waste waters (except Toilet Wastes) in domestic and commercial places (Bar, Restaurant, Laundry etc.)
    |
Recommended Waste Pipe Diameter : 50 mm
Normal Operating Temperature : 35°C (Maximum acceptable of 90°C for 5 min Max)
Index of Protection : IP44
Electrical Power Supply : 220 - 240 V / 50Hz
Motor Power Rating : 750W
Product's Weight : 10 kg
Tank Volume : 10 Litres
Application for Saniflo Macerating & Grinder Pump: Wash Basin / Sink Compatible Dishwasher Compatible Shower Compatible Urinal Compatible Bathtub Compatible Washing Machine Compatible
|

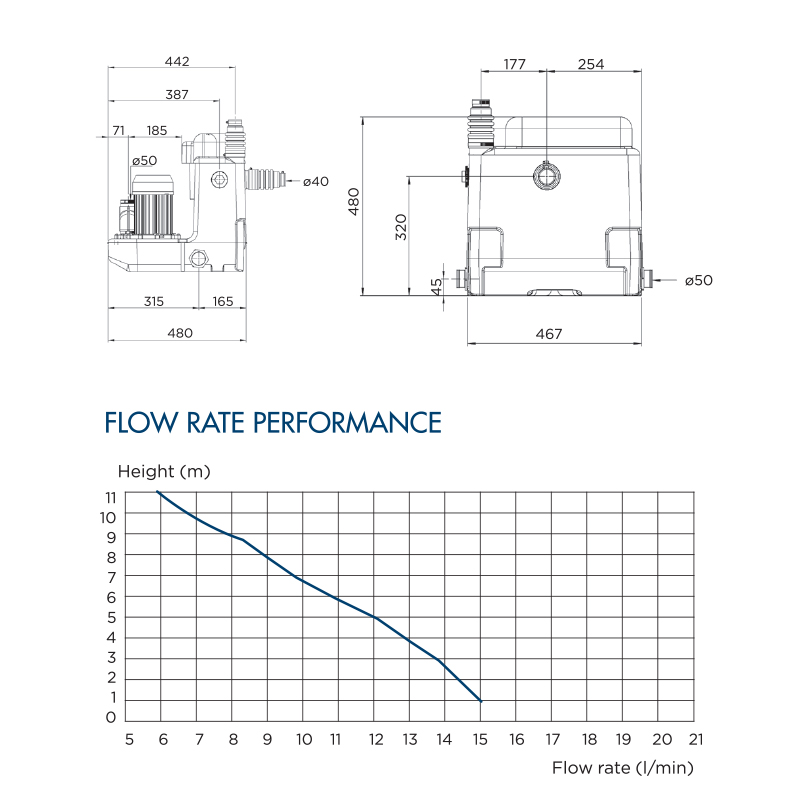

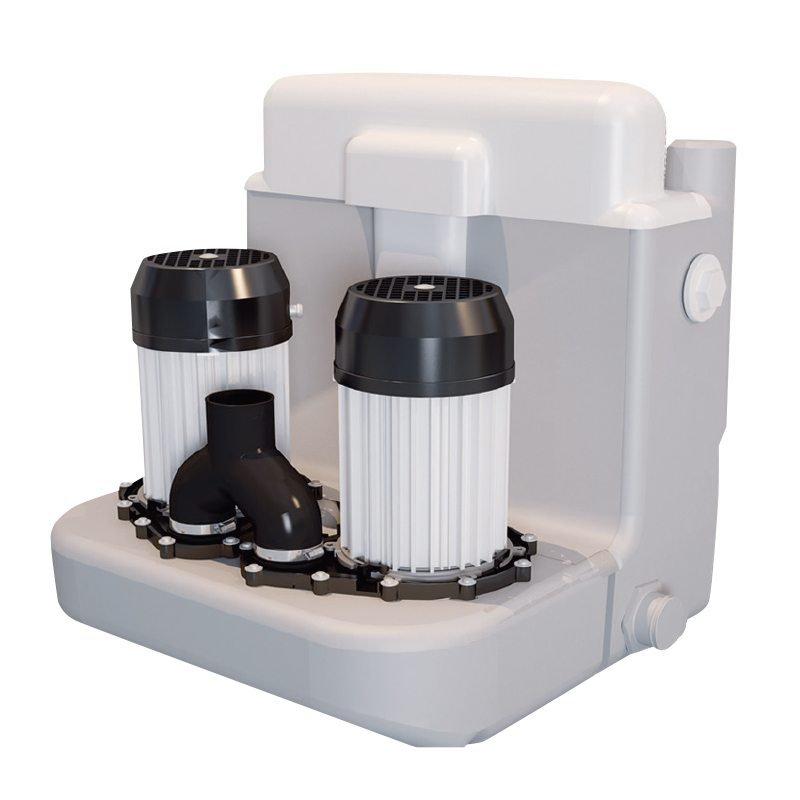

Saniflo SANICOM®2 Grinder Water Pump System is a dual-motor Gray Water Pump that can be used to pump away waste water from bathrooms (Except Toilets), Kitchen & Utility Rooms. This Water Pump has been specially designed for domestic or commercial use.
    |
Recommended Waste Pipe Diameter : 50 mm
Normal Operating Temperature : 35°C (Maximum acceptable of 90°C for 5 min Max)
Index of Protection : IP44
Electrical Power Supply : 220 - 240 V / 50Hz
Motor Power Rating : 2 x 1300W
Product's Weight : 26 kg
Tank Volume : 34.5 Litres
Application for Saniflo Macerating & Grinder Pump: Wash Basin / Sink Compatible Dishwasher Compatible Shower Compatible Urinal Compatible Bathtub Compatible Washing Machine Compatible
|
