Besstem UPVC Rainwater Fittings Series 112° Equal Y Tee (One Spigot Tee)

Besstem UPVC Rainwater Fittings Series 112° Equal Y Tee (One Spigot Tee)

RM360.00

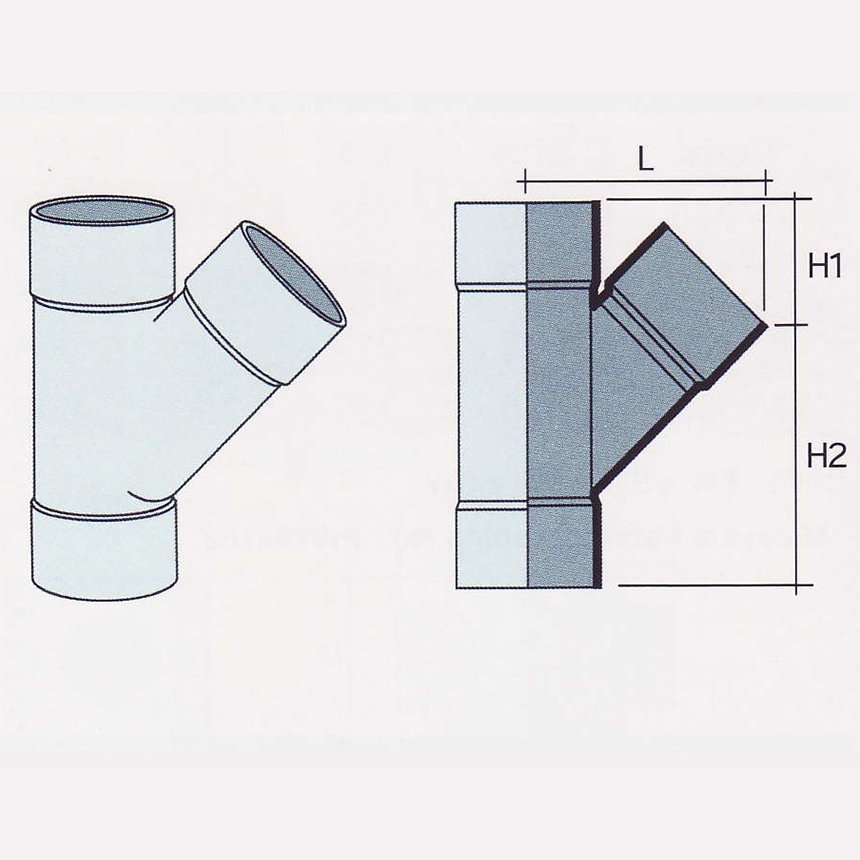

200mm x 112° Equal Y-Tee (One Spigot Tee), SW x SW x SE

Additional information

Model Besstem UPVC Rainwater Downpipe
Angle 112 °
Color White / Light Grey
Warranty No

Besstem UPVC Pipe & Fitting Rainwater Downpipe System (BS EN 12200-1:2000)

Besstem UPVC Pipe and Fittings Rainwater Downpipes are generally manufactured from Unplastized Polyvinyl Chloride (PVC-U). Ring seals are EPDM and Natural Rubber complying with the requirements of BS 2494:1976.

Besstem UPVC Pipe and Fitting have the complete range of Pipe and Fittings are available in Seven (7) nominal sizes ie :- 50mm (2") ; 82mm (3') ; 110mm (4") ; 160mm (6") ; 200mm (8") ; 250mm (10") ; & 315mm (12"). Standard pipe length is 6 Metre long Plain Ended.

Besstem UPVC Pipe & Fitting Rainwater Downpipe System Standard Complies :-

Besstem BS4576 UPVC Rainwater Downpipe System complies where applicable with the requirements of :-

  1. BS 4576: Part 1:1970 and BS 4576: Part 1:1989 Unplasticized Polyvinyl Chloride (PVC-U) rainwater goods and accessories. It is suitable for internal and external exposed installations.
  2. ISO 3633:1991(E) Unplasticized Poly (vinyl chloride) (PVC-U) Pipes and fittings for soil and waste discharge (low and high temperature) system inside buildings. It is suitable for internal and external exposed installations.
  3. ISO 4422-2:1996 (E) Pipes and fittings made of Unplastized Poly (Vinyl Chloride) (PVC-U) for water supply. It is suitable for casting within reinforced concrete (RC) columns and also for buried underground sump's connection.

Besstem UPVC Pipe & Fitting Rainwater Downpipe System Advantages and Features :-

  • Lightweight - For easier handling and installation
  • Higher Flow Rate
  • Temperature Range - For use with Intermittent Discharge of Water up to 90°C. Coefficient of expansion of UPVC is 5X10° per Degree i.e. 0.5mm per 10°C change in temperature.
  • Corrosion Resistance
  • Chemical Resistance - Besstem UPVC Pipe and Fitting are resistant to the wide range of chemical listed in BS.CP312:PART 1
  • Flame Resistance
  • Impact Strenght - Eventhough impact resistance will be decrease with time, UPVC component require no maintenance as it does not impair performance.
  • Favorable Cost
  • Colour - All pipes and fittings are manufactured in Two Colour i.e. White for internal & external wall of building used. Light Grey for bridges and elevated highway.

Besstem UPVC Pipe & Fitting Rainwater Downpipe System Typical UPVC Properties :-

 Properties Values
Density 1,420 kg/m3
Bending Strenght (ASTM D-790  860 kg/cm2
Thermal Conductivity 1.6W/(m.K)

Vicat softening Temperature (Min)

(for BS4576:1989)

75°C
Modulus of Elasticity 3,000N/mm2
Tensile strenght at yield 20°C (Min)  45N/mm2
Specific Heat 1000 J/(kg.K)
Coefficient of Linear Expansion 6 x 10-5/K

Vicat Softening Temperature (Min)

(for ISO4422-2:1996 E)

80°C
Poisson's Ratio 0.3
Elongation at Break (Min) 80%

For more info and details, view Besstem UPVC Pipe & Fitting Products's Catalogue
