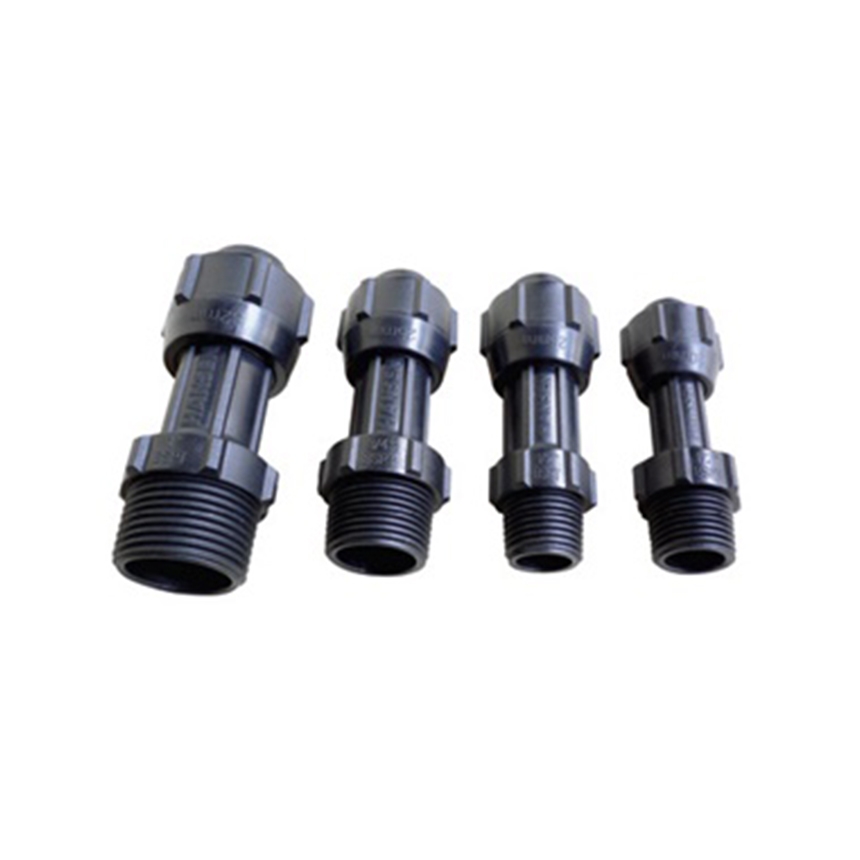

HANSEN HDPE FITTING NYLON 6 - HIGH PERFORMANCE MATERIAL

Hansen HDPE is approved by the Water Supply (Water Quality) Regulations 1989 & Water Regulations Advisory Comittee (WRAS) of UK for its use in potable water, this material is superior to existing materials being used in terms of strength and ability to withstand heat. The fittings are designed and comply to British Standard BS 5114:1975 (1981)(AMD.2 - 1987) and ISO 22391-3.

MECHANICAL PROPERTIES FOR HANSEN HDPE FITTING NYLON 6

Hansen fittings, together with High Density Polyethylene (HDPE) Pipes or Polyethylene -Raised Temperature (PE-RT) Pipes, provide an unsurpassable potable water system. These sleek fittings are slim enough to be buried in walls and are able to withstand very high pressures.

HANSEN HDPE FITTING ADVANTAGES AND SPECIAL PROPERTIES

Hansen HDPE Fittings is the only Plastic Fittings system for potable water in Malaysia to have under gone the cyclic pressure shock test. The fittings are tested at 23°C ± 2°C for 10,000 cycles of alternate internal positive pressure of 1 Bar ± 0.5 Bar at frequency of at least 30 pressure cycles per minutes.

Resistance to pull out of assembled joint. The jointed assembly is applied a constant tension for 1 hour on the basis that it is subjected to a maximum internal test pressure of 37.5 Bar.

Hydrostatic requirement when subjected to bending stress. When the assembly is bent to a radius of 20 times the diameter of the pipe, the jointed assembly shall withstand for 1 hour without leakage an internal positive pressure of 37.5 Bar.

External Pressure requirement The jointed assembly shall withstand for 1 hour without leakage, a pressure of 0.80 Bar above atmospheric pressure.

Effect on Water Complies to BS 6920:Part 1 and Part 2.

Opacity The wall of the fittings shall not transmit more than 0.2% of the visible light falling on it.

HANSEN HDPE FITTING SPECIAL FEATURES AND ADVANTAGES :-

• Size - Sleek joint system for use in confined areas or locations susceptible to ground movement and small enough to conceal in the wall.
• Time - Fast & simple installation.
• Simple - No "O" ring, No crimping, No solvent cement, No compression ring. No specialist / site equipment / skilled labour required.
• Cost effective - Saving in tools, workers and time.
• Durable - Long life service, leak-free. High performance material - Nylon 6 Engineering Plastic that can withstand heat & high stress applications.
• Price - Economical.
• Excellent hydraulic flow characteristics.
• Corrosion and rust resistance.
• Excellent hydraulic flow characteristics.
• Test results from reputed testing bodies, SIRIM, IKRAM, SPAN.
