- Specifications for JK Brass Ferrule Cock
Additional information
| Brand | JK |
| Material | BRASS |
| TYPE | FERRULE COCK |
- Description for JK Brass Ferrule Cock
The First 2" Brass Ferrule Cock in Malaysia : Approved and Certified by SPAN Malaysia
.png)
JK 2" Brass ferrule cock is the first in Malaysia to be commercially available in Malaysia market. What's more, the valve is approved and certified by SPAN Malaysia under Watermark product certification.

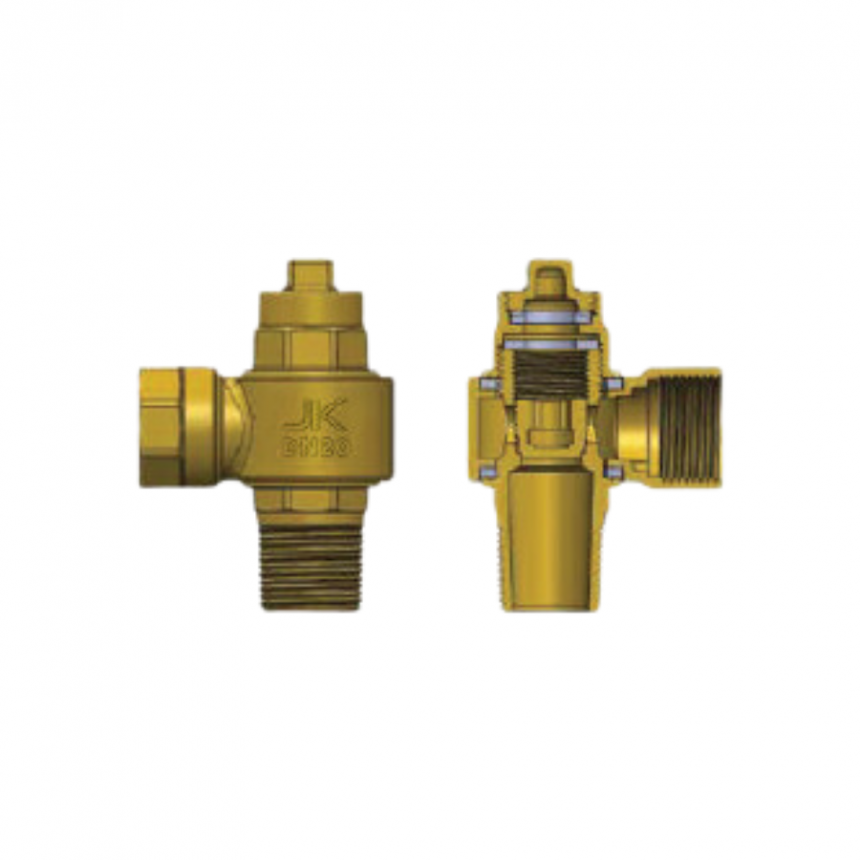

JK Brass Ferrule Cock Dimension
JK Brass Ferrule Cock Technical Specification
Nominal Pressure : PN16
Working Temperature : < 50
Application Medium : Potable Water
Material : C3771
| Size | A | B | C | D |
| 1/2" | PS 1/2" | 88.0 MM | PT 1/2" | 43.5 MM |
| 3/4" | PS 3/4" | 88.0 MM | PT 3/4" | 42.5 MM |
| 1" | PS 1" | 94.8 MM | PT 1" | 48.5 MM |
| 2" | PS 2" | 137.0 MM | PT 2" | 79.0 MM |
For more information, please visit our article about Brass Ferrule Cock.
