VAG Gate Valve Ductile Iron EKO®plus Resilient Seat

There are no reviews yet.

RM264.00 - RM17,633.00

VAG Eko®plus Gate Valve - Ductile Iron Resilient Seat

Add to Wishlist

Specifications for VAG Gate Valve Ductile Iron EKO®plus Resilient Seat

Additional information

Material	DUCTILE IRON
Type	Resilient Seated, EPDM
Model	VAG EKO+

Description for VAG Gate Valve Ductile Iron EKO®plus Resilient Seat

VAG MALAYSIA GATE VALVE DUCTILE IRON RESILIENT SEATED - EKO®PLUS SERIES

VAG Gate Valve Ductile Iron Resilient-seated with bolted cover connection and flange or socket connection according to the SANS standard. Proven design with innovative improvements, such as plastic sliding caps on the wedge, guarantee low operating torques even after many years of use. Suitable for use in water distribution, in power plants, in industry and in pressure management.

Gate Valve Standard : Comply with BS 5163 Type A & B

Pressure Temperature Ratings

Working Pressure : 16 Bar
Testing Pressure (Shell) : 24 Bar
Testing Pressure (Seal) : 17.6 Bar
Working Temperature : -20°C to 110°C EPDM / -10°C to 80°C NBR

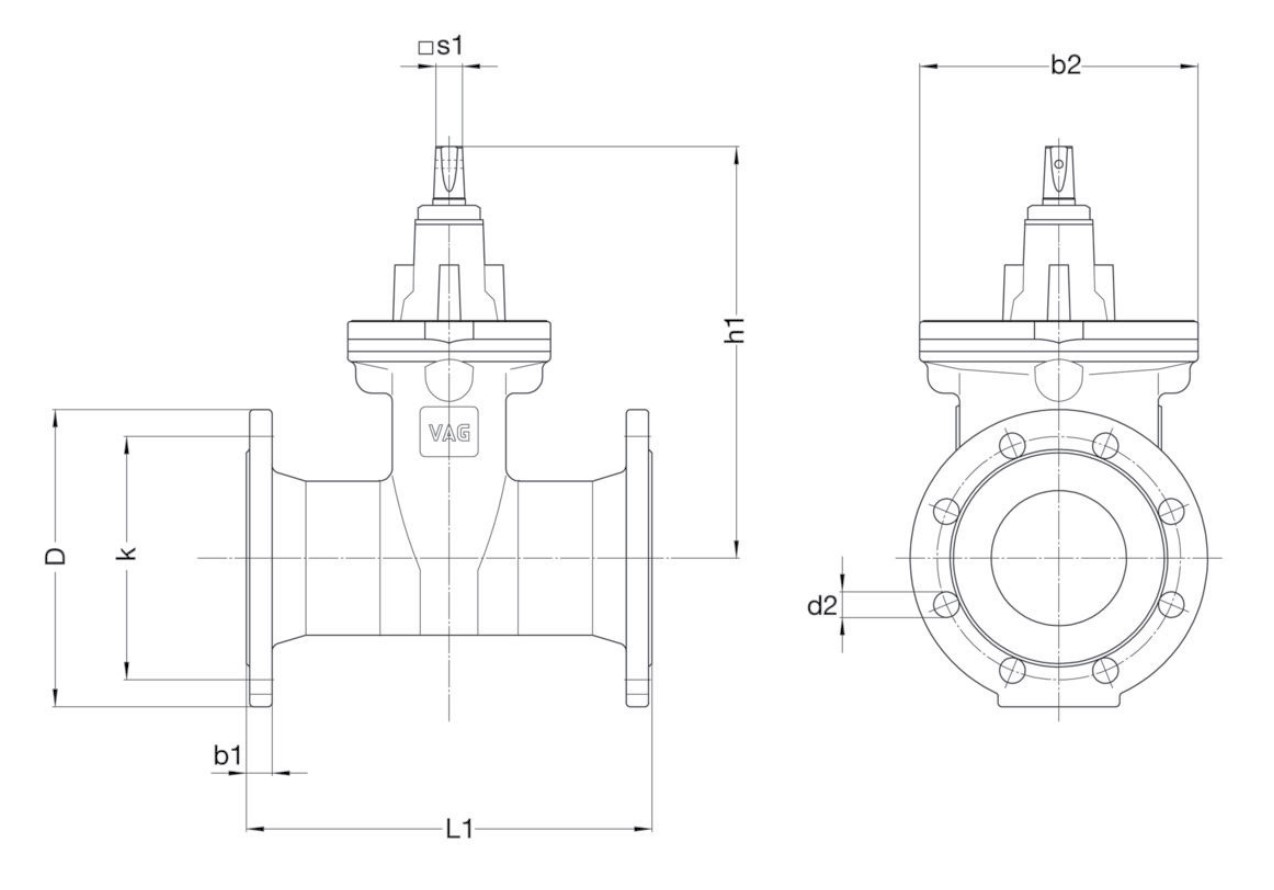

VAG GATE VALVE DUCTILE IRON DIMENSIONS

VAG GATE VALVE MALAYSIA

VAG GATE VALVE CROSS CUT MALAYSIA

VAG GATE VALVE EKO®PLUS MATERIAL SPECIFICATION

VAG DUCTILE IRON GATE VALVE MATERIAL SPECIFICATION
